TECHNICAL SPECIFICATION
Ref: 1400 -WET -PAN- MILL

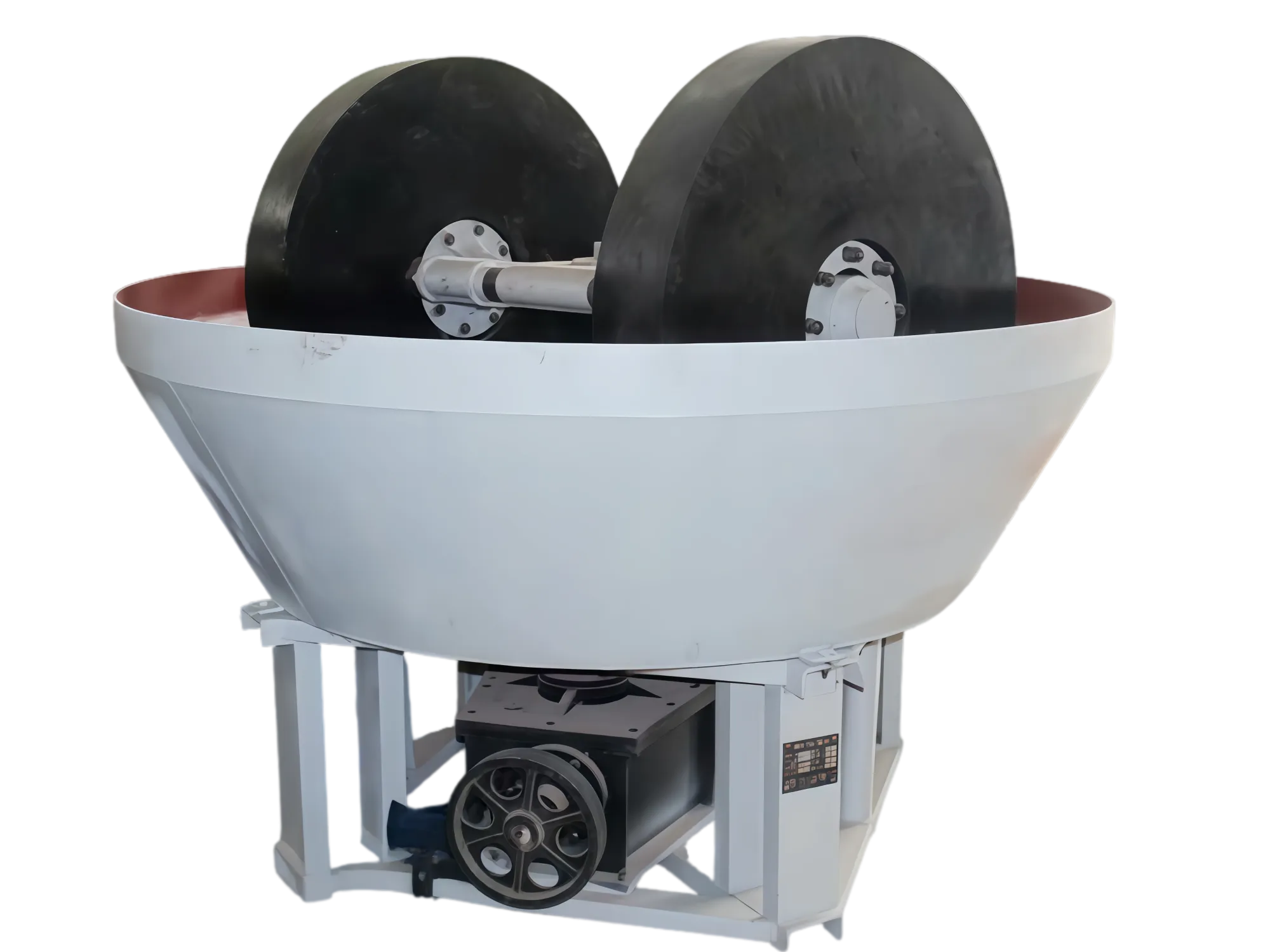

1400 Wet Pan Mill
The 1400 Wet Pan Mill is a durable wet grinding machine customized for gold mineral processing. Equipped with high manganese steel rollers and pan, this mining equipment delivers stable performance with 10-15t/h processing capacity. Featuring low power consumption, simple operation and high gold rec
The 1400 Wet Pan Mill is one of the most popular wet grinding machines in the mineral processing industry, specially designed for gold ore crushing, fine grinding and mercury amalgamation. It is widely used for rock gold, placer gold, silver, copper, lead, zinc and other metallic minerals. Compared with traditional ball mills, this wet pan mill has lower investment, lower power consumption, simple structure and extremely high gold recovery rate.
This model 1400 wet pan mill is upgraded with thickened manganese steel roller and pan, heavy-duty welded frame, stable reducer and pure copper motor. It is the ideal grinding equipment for small and medium mining enterprises, especially popular in Africa, South America, Central Asia and Middle East mining areas.
The motor drives the reducer to rotate the two heavy grinding rollers. Raw gold ore is evenly fed into the center of the grinding pan. Under the continuous squeezing, rolling and grinding of the two rollers, the hard ore is crushed into fine powder. During the grinding process, water and mercury are added into the water tank. Fine gold particles are captured by mercury to form gold amalgam. The mineral slurry overflows automatically, and the gold amalgam is manually collected regularly for further gold refining.
High Gold Recovery Rate: Fine gold recovery rate can reach 85%-95%, much higher than ordinary grinding machines.
Durable Manganese Steel Material: Rollers and grinding pan adopt high manganese steel, wear-resistant and long service life up to 1.5-2 years.
Energy Saving: Power consumption is 30% lower than ball mills, greatly reducing daily operation cost.
Simple Operation: One worker can complete feeding, grinding and discharging. No complex technical training required.
Stable Performance: Thickened steel frame, anti-vibration design, not easy to deform under heavy load.
Adjustable Fineness: Discharge fineness ranges from 5 mesh to 200 mesh, freely adjustable for different ore conditions.
Item | Specification |
|---|---|
Roller Diameter | 1400 mm |
Roller Thickness | 250 mm |
Pan Diameter | 2000 mm |
Feeding Size | ≤30 mm |
Discharge Fineness | 5-200 Mesh (Adjustable) |
Processing Capacity | 10-15 Tons/Hour |
Motor Power | 18.5 KW Pure Copper Motor |
Machine Weight | 8500 KG |
Overall Dimension | 2700×2700×2100 mm |
Wearing Part Material | High Manganese Steel |
Rock gold ore, quartz gold ore grinding and amalgamation
Placer gold and tailings gold recycling
Silver, copper, lead, zinc, molybdenum mineral processing
Small and medium mining plant replacing ball mill
Mining projects in Africa, South America, Southeast Asia
The 1400 wet pan mill is the most cost-effective grinding equipment for individual miners and medium mining companies. It requires low initial investment, easy installation, low maintenance cost and very few vulnerable parts. After long-term field test in Africa mining sites, this machine shows stable performance even under harsh environment, dusty conditions and unstable voltage. All wearing parts can be replaced separately, which greatly saves later maintenance cost.
Standard export wooden box or steel frame packaging. Main machine, motor, reducer and spare parts are packed separately. We support sea freight, land freight and container shipment. Detailed installation manual and operation video are provided for every customer.
